WCAG typography testing ensures text is accessible for all users, focusing on readability, contrast, and scalability. This guide explains how to meet WCAG standards, why they matter, and tools to test compliance.
Key Takeaways:
- Contrast Ratios: Minimum 4.5:1 for normal text, 3:1 for large text (Level AA); stricter for Level AAA.
- Text Resizing: Must scale up to 200% without breaking functionality.
- Spacing: Line height (1.5x font size), letter spacing (0.12x), and word spacing (0.16x) are required.
- Tools: Use WAVE, axe DevTools, or manual browser testing to check compliance.
Typography accessibility isn’t just about compliance – it improves readability for users with disabilities and enhances user experience for everyone.

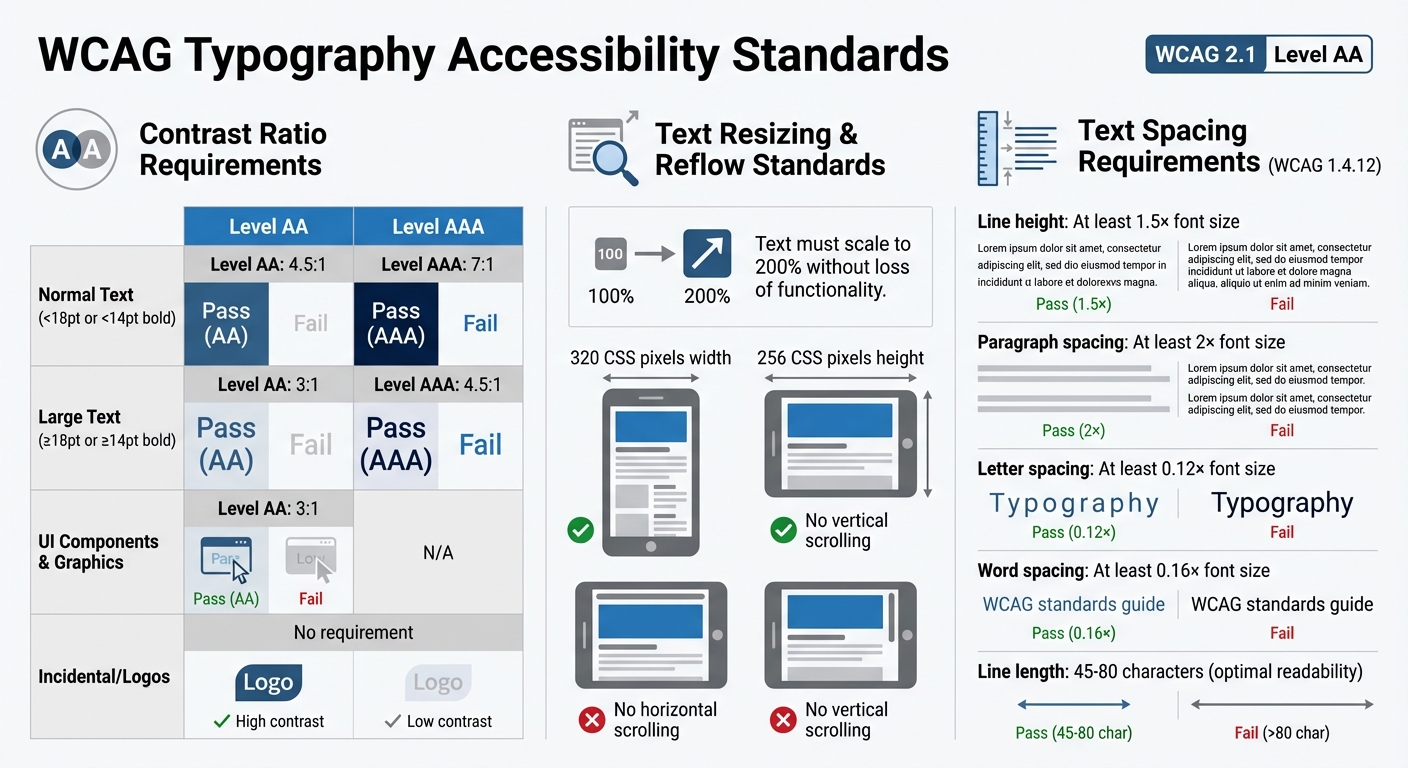

WCAG Typography Requirements: Contrast Ratios, Text Sizing, and Spacing Standards
WCAG Typography Standards and Requirements
Contrast Ratio Requirements
WCAG 2.1 sets specific guidelines for text contrast to ensure readability. According to Success Criterion 1.4.3 (Level AA), the contrast ratio must be at least 4.5:1 for regular text and 3:1 for large-scale text. For Level AAA compliance, the requirements increase to 7:1 for regular text and 4.5:1 for large-scale text. Large-scale text refers to fonts that are at least 18 points (commonly 24px) or 14 points bold (around 18.66px).
The 4.5:1 ratio for Level AA helps users with 20/40 vision, while the stricter 7:1 ratio for Level AAA accommodates those with vision equivalent to 20/80.
There are exceptions to these rules. For instance, text in logos, incidental text (used for decoration or hidden content), and inactive interface components are not required to meet contrast ratios. However, contrast guidelines do apply to images containing text unless the text is essential or customizable. It’s also important to note that computed contrast values must not be rounded; for example, a ratio of 4.499:1 does not meet the 4.5:1 threshold.
| Text Type | Level AA Requirement | Level AAA Requirement |
|---|---|---|
| Normal Text (<18pt or <14pt bold) | 4.5:1 | 7:1 |
| Large Text (≥18pt or ≥14pt bold) | 3:1 | 4.5:1 |
| UI Components & Graphics | 3:1 | N/A |
| Incidental/Logos | No requirement | No requirement |
To check contrast during design, tools like the WebAIM Contrast Checker, Adobe Color, or the Colour Contrast Analyser can be helpful. Always define both foreground and background colors in CSS to avoid unintended contrast issues caused by user default settings. Additionally, be cautious with thin fonts – while they may technically meet contrast ratios, anti-aliasing can make them harder to read.
These contrast standards also play a role in ensuring typography remains accessible when resizing or adjusting spacing.
Text Resizing and Reflow Standards
After addressing contrast, text scalability becomes the next key aspect of accessibility.
Success Criterion 1.4.4 (Level AA) requires that text can be resized up to 200% without assistive technology and without losing content or functionality. This ensures users can zoom text to twice its size while still accessing all information.
Success Criterion 1.4.10 ensures that content remains viewable without requiring both horizontal and vertical scrolling. Vertical scrolling is tested at a width of 320 CSS pixels, and horizontal scrolling at a height of 256 CSS pixels. This eliminates the need for excessive scrolling, which is particularly beneficial for users with low vision who rely on screen magnifiers.
"The author’s responsibility is to create web content that does not prevent the user agent from scaling the content and that allows the reflow of the content within the current width of the viewport." – W3C
Using relative units like percentages, em, or rem for font sizes and container widths ensures smooth resizing. Avoid fixed-width containers, as they may cause text to overlap or get cut off when resized.
Spacing and Line Height Guidelines
Proper spacing is another critical factor that enhances readability and complements scalable text.
Success Criterion 1.4.12 (Text Spacing) at Level AA requires that no content or functionality is lost when users adjust text spacing. Specifically, users should be able to:
- Set line height to at least 1.5 times the font size.
- Adjust paragraph spacing to at least 2 times the font size.
- Modify letter spacing to at least 0.12 times the font size.
- Increase word spacing to at least 0.16 times the font size.
Research by McLeish shows that increasing letter spacing up to 0.25 em improves reading speed for users with low vision, with noticeable benefits starting at 0.20 em.
To maintain flexibility, avoid fixed-height containers for text. Instead, use dynamic sizing options like min-height or allow containers to expand with content. This prevents vertical clipping. If using text-overflow ellipses, provide a way for users to access the full content, such as displaying the complete text on hover or focus.
| Property | WCAG Minimum Requirement |
|---|---|
| Line height (spacing) | At least 1.5 times the font size |
| Paragraph spacing | At least 2 times the font size |
| Letter spacing | At least 0.12 times the font size |
| Word spacing | At least 0.16 times the font size |
The WCAG team tested these spacing guidelines across around 480 languages and scripts to ensure they work universally, avoiding issues like diacritics separating from their characters.
Typography Testing Methods and Tools
Automated Typography Testing Tools
Automated tools can catch some typography issues, but they often miss critical WCAG (Web Content Accessibility Guidelines) failures. For instance, a manual review in a study uncovered 37 unique WCAG failures, while the best-performing automated tool caught only 5. This highlights that automated testing is a helpful starting point, but it’s far from comprehensive.
WAVE (Web Accessibility Evaluation Tool) is a browser extension available for Chrome, Firefox, and Edge. It flags contrast issues when text contrast falls below 4.5:1 for regular text or 3:1 for large text. It also features a "Contrast" panel where you can experiment with color combinations in real time. WAVE defines large text as 24px or larger, or 18.67px if bold.
axe DevTools audits for insufficient contrast and improper ARIA attributes, while ARC Toolkit (Chrome only) identifies skipped heading levels and text contrast issues over image backgrounds. For checking spacing compliance, the Text Spacing Bookmarklet adjusts line height to 1.5 and letter spacing to 0.12 automatically to test layout resilience.
Looking ahead, WCAG 3 standards will adopt the APCA (Advanced Perceptual Contrast Algorithm) Calculator, which factors in font weight and size for contrast calculations instead of relying solely on a simple ratio.
| Tool | Primary Typography Function | Platform |
|---|---|---|
| WAVE | Contrast ratios, heading structure, style-off previews | Chrome, Firefox, Edge |
| axe DevTools | WCAG audits and ARIA validation | Chrome, Firefox |
| ARC Toolkit | Highlights skipped heading levels, text-on-image issues | Chrome |
| Text Spacing Bookmarklet | Tests 1.4.12 Text Spacing requirements | Browser Bookmarklet |
Manual Testing with Browser DevTools
While automated tools offer a solid starting point, manual testing is essential for addressing WCAG’s finer details. Browser developer tools can uncover what automated scans miss. For example, the Inspect tool in Chrome or Edge lets you verify if font sizes use relative units like rem, em, or % instead of fixed pixels (px). This ensures text scales properly when users adjust browser settings.
Both Chrome and Edge DevTools include a color picker that shows contrast ratios, flagging any issues. The Force State feature lets you test :hover, :focus, and :active states to confirm that contrast remains adequate during interactions.
For zoom testing, set your browser viewport to 1,280 pixels wide and zoom to 400%. Check manually that the text reflows into a single column without requiring horizontal scrolling. In Firefox, use "View > Zoom > Zoom Text Only" to confirm that increasing font size to 200% doesn’t break the layout or cause text overlap.
Ensure headings follow a logical order from H1 to H6. The Rendering tab in Chrome DevTools can simulate "prefers-contrast" media features, allowing you to evaluate how typography responds to different OS-level accessibility settings.
After completing these manual tests, use a checklist to systematically confirm compliance.
Typography Testing Checklist
A checklist ensures no requirement goes overlooked. Start with contrast ratios: normal text must meet a 4.5:1 minimum, while large text (18pt/24px or 14pt/18.67px bold) requires 3:1. For AAA compliance, these thresholds rise to 7:1 and 4.5:1, respectively.
Test text resizing to 200% to confirm full functionality. Check reflow at 320px width (equivalent to 400% zoom on a 1,280px screen) to ensure no horizontal scrolling.
Verify text spacing by overriding styles to ensure layouts don’t break. Line height should be 1.5x the font size, paragraph spacing 2x, letter spacing 0.12x, and word spacing 0.16x. Keep line lengths under 80 characters for better readability.
Avoid fully justified text alignment, as it can create uneven spacing that’s harder to read, particularly for users with dyslexia. Stick to sans-serif fonts like Arial or Helvetica for body text, and ensure a minimum font size of 12-point (approximately 16px). Finally, view your page in grayscale to confirm that no information relies solely on color.
| Requirement | WCAG Success Criterion | Standard (Level AA) |
|---|---|---|
| Contrast (Normal Text) | 1.4.3 | 4.5:1 minimum |
| Contrast (Large Text) | 1.4.3 | 3:1 minimum |
| Text Resizing | 1.4.4 | 200% without loss of function |
| Reflow | 1.4.10 | No horizontal scroll at 320px width |
| Line Height | 1.4.12 | Must support 1.5x font size |
| Letter Spacing | 1.4.12 | Must support 0.12x font size |
Adding WCAG Typography to Design Workflows
Designer and Developer Collaboration
The WCAG Quick Reference can be a handy tool for dividing responsibilities between designers and developers. Designers focus on defining typography tokens – like size, style, and spacing – within mockups, while developers implement these using relative units such as rem, em, or percentages. This ensures text remains scalable and accessible for all users .
To prevent text from being clipped when users adjust spacing or zoom in, developers should use fluid containers with overflow-wrap: break-word . Designers should establish a clear visual hierarchy with headings and subheadings, and developers must reflect this structure using semantic HTML tags (<h1> through <h6>). This allows screen readers to navigate the content efficiently .
Whenever possible, opt for web fonts and proper HTML markup instead of using text embedded in images. This maintains clarity and scalability across different devices and screen sizes .
By working together, designers and developers can create a strong foundation for accessibility-first design.
Accessibility-First Design Principles
Accessibility should be woven into every design decision. Start with easy-to-read typefaces like Arial, Verdana, or Open Sans, and always define font sizes using relative units. Avoid overly decorative fonts, handwritten styles, or all-caps text for body copy. Additionally, ensure that characters like uppercase "I", lowercase "l", and the number "1" are easily distinguishable .
For text formatting, stick to left-aligned text and follow these guidelines:
- Line height: at least 1.5× the font size
- Paragraph spacing: 2× the font size
- Letter spacing: 0.12× the font size
- Word spacing: 0.16× the font size
- Line length: between 45 and 80 characters
Test your designs at a 320px-wide viewport (equivalent to 400% zoom) to confirm that content reflows vertically without causing horizontal scrolling. These adjustments align with WCAG Success Criteria 1.4.8 (Visual Presentation) and 1.4.12 (Text Spacing).
"If your typography isn’t accessible, the message fails, no matter how sophisticated your design." – Accesify Team
Working with Professional Services for Compliance
If your team lacks the expertise to handle accessibility in-house, professional services can step in to ensure compliance. For example, Robust Branding offers tailored solutions for small and growing businesses, including web design, SEO strategies, and digital marketing. Their services can help ensure your typography and digital assets meet accessibility standards.
Experts in the field bring deep knowledge of WCAG 2.1 requirements and emerging guidelines. They can prioritize high-traffic pages for audits, implement semantic markup, and build design systems that prevent future accessibility issues. Beyond reducing legal risks, partnering with professionals opens your business to a broader audience – approximately 20% of the global population experiences disabilities that impact web usage. This partnership is a practical step toward achieving full WCAG compliance and expanding your reach.
sbb-itb-fd64e4e
Conclusion and Key Takeaways
WCAG Typography Best Practices Summary
To wrap up the guidelines and testing methods covered earlier, here are some key practices to implement for accessible typography. Aim for a contrast ratio of 4.5:1 for normal text and 3:1 for large text to meet WCAG standards. For better readability, try to exceed these minimum contrast levels. Use relative units like percentages or ems to ensure text scales properly across devices. Stick to well-known sans-serif fonts such as Arial, Verdana, or Open Sans for body text, as these are easier to read and understand.
Spacing is just as critical as contrast. Use a line height of at least 1.5 times the font size and paragraph spacing that’s at least 2 times the font size. Keep line lengths between 45 and 80 characters, align text to the left, and test layouts at a 320-pixel viewport (approximately 400% zoom) to ensure content reflows properly without horizontal scrolling. Avoid justified text alignment, as it can create uneven spacing that disrupts reading flow.
These practices offer a solid starting point for making your website more accessible and user-friendly.
Next Steps for SMBs
Once these best practices are in place, small and medium-sized businesses (SMBs) can take additional steps to improve accessibility. Start by auditing your site with tools like axe DevTools or WebAIM Contrast Checker. Update your text to a minimum of 16px and make sure similar-looking characters are easy to distinguish. Replace any embedded image text with HTML text to enhance customization options and screen reader compatibility.
If your team doesn’t have accessibility experts, consider working with professionals. For instance, Robust Branding provides web design, SEO, and digital marketing services tailored to small businesses. They can help ensure your typography meets WCAG standards while also strengthening your overall online presence.
Long-Term Benefits of Accessible Typography
The advantages of accessible typography go beyond just meeting compliance standards. In 2020, approximately 61 million Americans – 19% of the U.S. population – had a disability. By optimizing your typography for individuals with low vision, dyslexia, ADHD, or color vision deficiencies, you also improve usability for everyone, including older adults and mobile users navigating in bright sunlight.
"Accessibility has progressed from a good idea to a key market differentiator."
– Steven Hoober, 4ourth Mobile
Accessible typography not only expands your audience but also strengthens your brand and reflects a commitment to inclusivity. Plus, it helps reduce the risk of legal challenges under the Americans with Disabilities Act (ADA) Title III, which addresses digital accessibility. By prioritizing accessibility, you create a more inclusive digital experience, build trust with your audience, and position your business as socially responsible – all while minimizing potential legal risks.
Testing 1.4.12 Text Spacing | Manual WCAG Auditing Tutorial
FAQs
What are the best tools for testing typography accessibility with WCAG standards?
For making sure your typography aligns with WCAG 2.x accessibility standards, there are two tools worth checking out:
Stark works seamlessly with design platforms like Figma and Sketch. It helps you evaluate typography directly on your artboards, flagging issues like text that’s too small (under 12 px) and suggesting quick solutions. Plus, Stark offers a browser extension for reviewing live websites, making it useful for both design and development stages.
WAVE (Web Accessibility Evaluation Tool) is another great choice. Available as a browser extension or online tool, it spots typography problems like low contrast or inadequate text size by placing visual markers on your site. If you’re more advanced, WAVE’s API can even automate testing across multiple pages.
Both tools are free to get started and provide practical recommendations to help you meet WCAG standards for text size, contrast, and spacing.
What is the importance of contrast ratios in typography accessibility?
Contrast ratios play a key role in ensuring text is legible by measuring the brightness difference between text and its background. This is especially important for people with low vision, color blindness, or reduced contrast sensitivity. According to the WCAG 2.1 guidelines, the minimum contrast ratio should be 4.5:1 for regular text and 3:1 for larger text (14 pt bold or 18 pt regular). For those aiming for even better accessibility, the stricter AAA standards recommend a contrast ratio of 7:1 for normal text and 4.5:1 for larger text.
Font size and weight also significantly impact readability. Larger or bolder fonts can make text easier to read, even if the contrast ratio is slightly lower. To ensure designs meet these standards, tools like contrast checkers can be used early in the design process. By adhering to these guidelines, brands like Robust Branding can craft designs that are not only inclusive and accessible but also provide a smoother, more enjoyable user experience.
Why is it important for text to be scalable for WCAG compliance?
Text scalability allows users with visual impairments to enlarge text up to 200% without compromising content or functionality. This ensures they can read and interact with digital content more comfortably, even without the use of assistive technologies.
By implementing text scalability, you not only create a more inclusive digital experience but also ensure your website aligns with WCAG guidelines, making it accessible to a wider range of users.
